A Dental Esthetic Checklist for Treatment Planning in Esthetic Dentistry
Joseph R. Greenberg, DMD; and Meredith C. Bogert, DMD
Abstract
A dental esthetic checklist form has been introduced for use in the diagnostic work-up of a patient accepted for treatment in an Advanced Education in General Dentistry program. The checklist, divided into seven basic criteria, is not a complete list of all possible categories and nuances that an esthetic restorative assessment might include. The correct initial identification of these criteria does not limit the dentist from pursuing more detail; in fact, this checklist is an introductory organizer that invites further exploration. In the authors' experience, the use of this form prompts the student to broaden his or her vision from purely a dental/periodontal focus to one that encompasses lip, cheek, and tongue configurations; smile; facial features; and related planes of symmetry. This approach directs the dental treatment plan toward the important additional goal of dentofacial harmony.
One objective of the Advanced Education in General Dentistry Program at the Kornberg School of Dentistry is to elevate the conceptual and technical treatment standards of its students. Fundamental to the residents' patient treatment experience is thorough examination, diagnosis, and treatment planning. Recent publications assert that the face is the first view requiring assessment by a dental practitioner,1 thus this is the initial assessment made by the residents in performing a work-up in a patient for treatment.
A dental esthetic checklist form, divided into seven basic criteria, has been introduced for use in the diagnostic work-up of a patient accepted for treatment in the program. This checklist is not a complete list of all the possible categories and nuances that a dental esthetic restorative assessment might include; another popular esthetic checklist includes 13 factors.2 However, sources in the dental literature consistently describe these seven basic criteria as essential to successful treatment results. The correct initial identification of these items does not limit the practitioner from pursuing more detail; instead, this checklist is an introductory organizer that invites further exploration. In the authors' experience, use of this form has prompted students to broaden their visions from purely a dental/periodontal focus to ones that emcompass lip, cheek, and tongue configurations; smile; facial features; and related planes of symmetry. This approach directs the dental treatment plan toward the additional goal of dentofacial harmony.
The "Dental Esthetic Checklist for Treatment Planning" is displayed in Table 1. A previous article3 defined and explained the facial and dental terminology used in the first three factors, but a discussion of supporting data is pertinent here.
Check Point 1: DM = FM
The value of aligning the maxillary dental midline (DM) to the patient's facial midline (FM) is cited with frequency in the removable prosthodontics literature.4-6 The first text on dental esthetics7 stated that "the midline should be perpendicular to the incisal and occlusal plane and parallel to the midline of the face." Chiche and Pinault8 wrote, "Harmonious facial features are more symmetrical close to the facial midline and more asymmetrical away from it." Spear9 reported that, in smile design, the starting point of the esthetic treatment plan is the facial midline. Morley and Eubank10 state that a practical approach to locating the FM requires two reference points: the nasion (a point between the eyebrows) and the base of the philtrum (also referred to as Cupid's Bow). A line connecting these two landmarks should locate the FM and also determine the direction of the midline; this factor is referred to as facial vertical axis (FV) on this dental esthetic checklist.
The maxillary DM is the important visual dental landmark. It coincides with the labial frenum and the FM in 70% of the population.11 The mandibular DM is either in motion during function or covered by the maxillary teeth at rest or in smile. In 75% of the population, it does not coincide with the maxillary midline,12 thus the mandibular dental midline is not usually visually important in esthetic dentistry.13
The importance of aligning DM and FM in dental esthetic endeavors has been questioned by Kokich et al.14 Their findings suggested that neither dentists nor laypersons notice a difference in DM to FM deviations of up to 4 mm. This study of altered photographic images of natural smiles used only one reference point-Cupid's Bow-and displayed no facial structures beyond the upper and lower lips. The patient used for this section of the article did not seem to have a sharply defined Cupid's Bow. This does not seem to satisfy the requirements for a facial reference point as previously described. By contrast, a more recent Web-based study15 with a larger sample size (2185 valid responses) used altered images of natural dentitions with full faces side by side. This study found strong preferences against midline shifts at 3 mm. Without a full-face reference, one may not be truly be assessing the impact of dental composition variations from the patient's point of view (Figure 1 and Figure 2).
Flores-Mir et al16 suggested that laypersons naturally see dental esthetics as part of overall facial esthetics unless intentionally directed to a close-up view of the dentition. Pattoff and Ozar17 wrote that although the expertise of the professional alone is considered sufficient to determine if an oral health need has been met, in esthetic dentistry it is the patient's judgment alone that is sufficient to determine if a result is appropriate. If the dental profession accepts these two articles as evidence based, it may wish to consider inclusion of the dentofacial examination as a component of diagnosis and treatment planning in the dental school curriculum. Similarly, if patients naturally see the full face and view their teeth and smile esthetics as part of this whole, then full-face images should become standard in professional presentations and publications on esthetic dentistry.
Check Point 2: DV = FV
DM should coincide with FM whenever possible. When DM = FM cannot be achieved, it is still highly desirable for the dental vertical axis (DV) to parallel the facial vertical axis (FV).12,18 This is referred to as DV = FV. It is possible but undesirable to have a correctly located DM with an incorrect DV. Any canted DV in either a restored or natural dentition is considered unattractive10 (Figure 3 and Figure 4).
Check Point 3: DH = FH
The interpupillary line, ophraic line (eyebrows), and commissural line impart an overall sense of harmony and horizontal perspective to the esthetically pleasing face.19 None of these three anatomic landmarks absolutely defines the facial horizontal 100% of the time, but it is recommended to use them as general reference planes and then finalize the facial horizontal (FH) determination as perpendicular to the already determined FV. The incisal edge line (incisal plane) of the maxillary anterior dental composition and the buccal cusp tips of any posterior teeth on display in wide smile should be symmetrical to the FH plane (Figure 5, Figure 6, Figure 7 and Figure 8).
There is considerable agreement for the esthetic importance of dental horizontal (DH = FH) among patients and dentists,2,3,7,8,14-16,19,20 yet it is often difficult to record the visually apparent FH using functionally oriented dental articulators.20 Supplementary devices now are available to dentists to transfer FH position to the dental laboratory technician accurately.3
Check Point 4:
Are both maxillary central incisors equal in position,symmetry, color/shade; and are they located at FM/FV/FH? Do the relative tooth proportions and specifications follow the rules of biometrics?
Although naturally occurring maxillary central incisors do not always measure the same in width and length, it is still recommended to strive for a matched pair of central incisors at FM = DM, FV = DV, and FH = DH when fabricating maxillary anterior dental restorations.8 These pairs anchor the central symmetry of the face to the dental composition, which is a universally recognized feature of physical attractiveness.21,22 Kokich et al concluded that asymmetric alterations make teeth more unattractive not only to dental professionals but also to laypersons.23

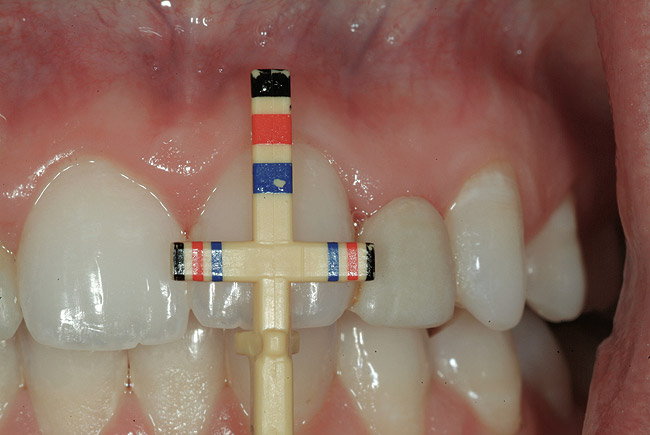

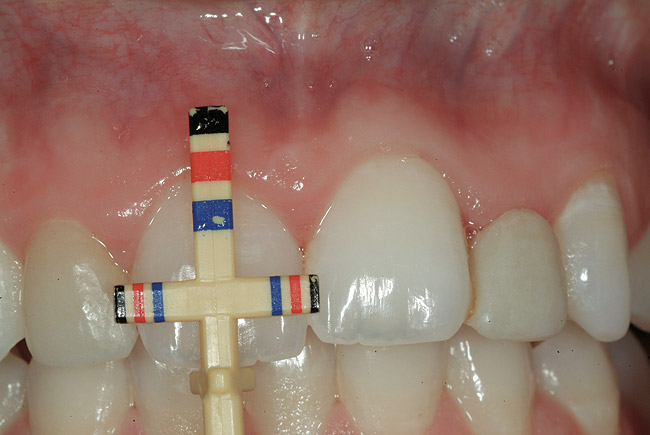

The Proportion Gauge (Hu-Friedy, https://www.hu-friedy.com) can be used to establish the 78% width/length proportion of maxillary central incisors as described by Chu.24 This gauge reliably produces visually attractive teeth based on data compiled from natural anatomic measurements. Biometrics24 is a recommended methodology to achieve pleasing upper and lower anterior tooth compositions true to natural dental anatomic specifications (Figure 9, Figure 10, Figure 11, Figure 12, Figure 13, Figure 14, Figure 15 and Figure 16).
Check Point 5:
Does the incisal edge line of the maxillary anterior teeth follow the superior contour edge of the lower lip?
There is general agreement that the incisal edge line of the maxillary anterior teeth (an imaginary line scribing through the incisal edges) should have an equidistant consistency to the superior contour edge of the lower lip.8 In cases in which the lower lip exhibits asymmetry, the recommendation is to follow the facial horizontal axis as previously determined and disregard the lower lip (Figure 17).
Check Point 6:
Does the incisal edge line form an "attractive" (convex, "gull-wing," or straight) edge pattern?
Attractive incisal edge lines can be convex, "gull-wing," straight, or some combination of these-but never concave in a downward direction8 (Figure 18 and Figure 19). While examining the incisal edge line and its relationship to the lips, it is a good time to note the relationship of the lip aperture to the dental display in "wide smile" and repose. The patient usually will give his or her widest smile when asked to bite tightly and say "E."
Check Point 7:
Profile and Phonetic/Speech Evaluation
Spontaneous clear speech is extremely important to the patient. The "F" and "V" sounds can be used to determine correct maxillary incisal edge position. The "S" sound has been described to test for adequate freeway space when an alteration in occlusal vertical dimension is being considered.4,8
Current writings question the emphasis that orthodontists traditionally have placed on profile view and lateral cephalometric analyses, but it is still important for the dentist to examine, relate, and document the profile view of the teeth, lips, and visible periodontium to the facial complex.26 Ackerman wrote that the future of dentofacial esthetic treatment planning lies in the clinician's ability to envision the patient's desired 3-dimensional soft-tissue outcome and then engineer the dental and skeletal hard tissues to produce this desired result. This science quickly is evolving with the aid of new technology that produces 3-dimensional images. As dentists learn to acquire, interpret, and share these images with their patients, new standards for dentofacial esthetic examination, diagnosis, and treatment planning may be established by the dental profession.
Conclusion
The dental literature now states that ideally, a dentist's work should conform to the dental profession's standards for teeth that are properly shaped and colored within an individual patient's complete dentition and balanced with the patient's gingival and facial features.27
A seven-point dental esthetic checklist that was developed for dentofacial examination, diagnosis, and treatment planning in an Advanced Education in General Dentistry program was presented. Its purpose is to guide the clinician, via the identification of an organized sequence of physical parameters recognizing major elements of dental composition and function and placing these elements in a symmetrical relationship within the facial complex, to a desired end point. This result should be a harmonious integration of displayed dental components with facial structures that patients and dentists will recognize as pleasing and attractive and that will fulfill the professional obligations of the dentist to these newly published ethical standards.
